Infinity Corrected Optical Industrial Inverted Metallurgical Microscope with C-Mount Camera Port for microstructure identification and analysis of various metals, alloys, ceramics and opaque electronic materials.
Weight :
7.5kgIllumination :
Reflected LED IlluminationObservation Head :
Trinocular HeadOptical System :
Infinity Corrected Optical SystemMagnification :
40×~1000×Power Source :
AC100~240VStandard :
GB, ASTM, JB, YB, HB, QCItem No :
LM-4XCLM-4XC Trinocular Inverted Metallurgical Microscope
| Product Summary |
The LM-4XC Trinocular Inverted Metallurgical Microscope is a professional industrial-grade metallurgical microscope built with an infinity corrected optical system, designed for high-precision microstructure observation and analysis of opaque materials. Featuring a stable inverted microscope structure and trinocular viewing head, it delivers sharp, distortion-free flat-field imaging performance and is widely deployed in manufacturing quality control, material research laboratories and educational institutions for routine metallographic inspection.
| Why Choose LM-4XC Trinocular Inverted Metallurgical Microscope |
| Obtain Excellent Image Quality | Save Time on Metallographic Analysis | User-Friendly & Low Operation Threshold | Flexible Modular Upgrade Solution |
| Adopts LIOS infinity flat-field achromatic optical system and Kohler LED illumination with uniform brightness. It delivers sharp, low-distortion images at high magnification and ensures stable and repeatable metallographic testing results. | Equipped with inverted optical design and large three-layer mechanical stage for heavy and bulky specimens. Easy sample placement reduces repeated focusing and greatly improves inspection efficiency. | It features a 360° rotatable trinocular head and right-hand centralized controls. The ergonomic design relieves fatigue during long-time observation, and new operators can get started with simple training. |
Standard universal C-mount fits mainstream industrial cameras. It can be upgraded with metallographic analysis software to realize automatic measurement, grain grading and test report export. |
| Application Scenarios |
| Features |
| Standard & Optional Accessories |
LM-4XC Inverted Metallurgical Microscope Standard Outfits
| Metallurgical Microscope Head |

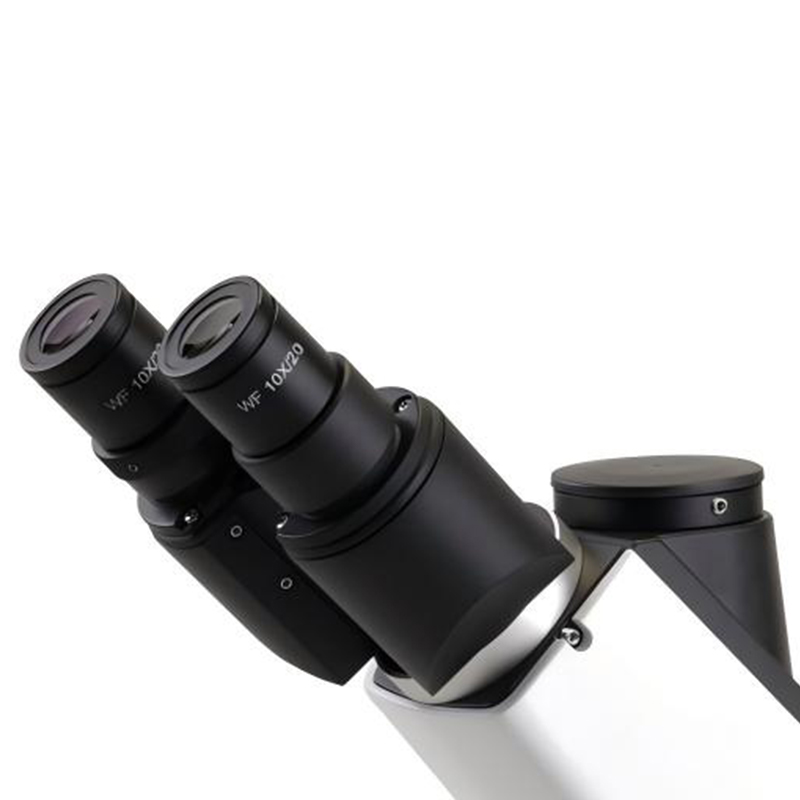

Trinocular viewing head, 45° inclined interpupillary distance 48-75mm Light splitting ratio: 70% for observation, 30% for photography WF10×/18mm wide field plan eyepieces, high eyepoint design |
|
Infinity Corrected Plan Achromatic Objectives |
PL 4× / NA=0.10 / WD=19.37mm PL 10× / NA=0.25 / WD=15.86mm PL 20× / NA=0.40 / WD=1.04mm PL 40× / NA=0.65 / WD=0.67mm 4 holes nosepiece |
|
Mechanical Stage |
3-layer mechanical moving stage, size 180×155mm 180×155mm- Moving range: 75×40mm, vernier scale 0.1mm Standard water drop slide |
| Focusing System |

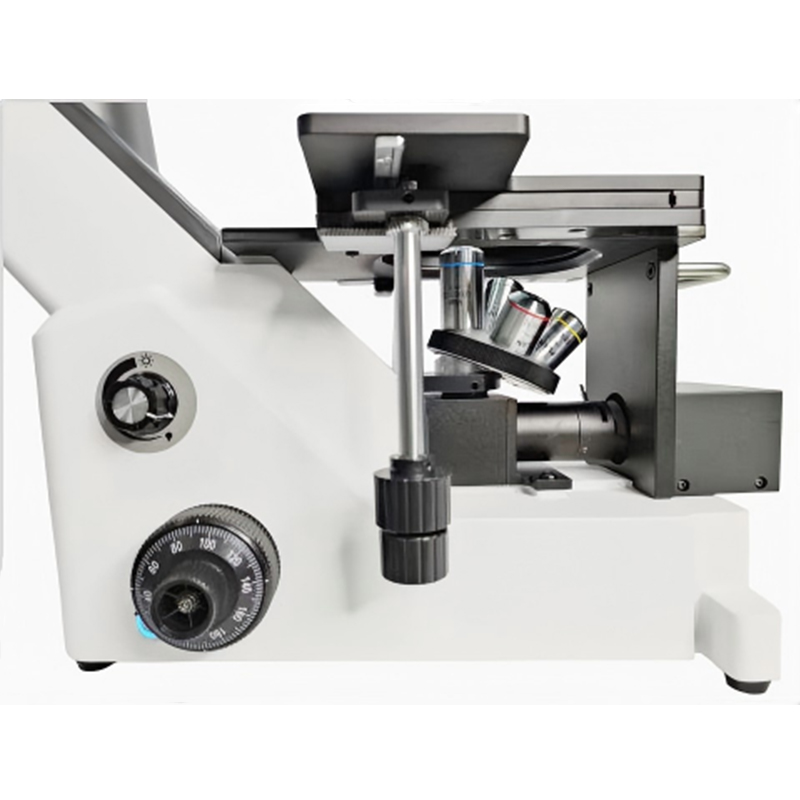

Low-position coaxial coarse and fine focusing knobs Coarse travel: 12mm; fine focusing: 0.2mm per revolution, graduation 2µm Coarse focus with tension adjustment |
|
Illumination System |
Reflected Kohler illumination optical system 5W long-life LED light source Wide voltage adapter: 100V-240V |
|
Photography Adapter |

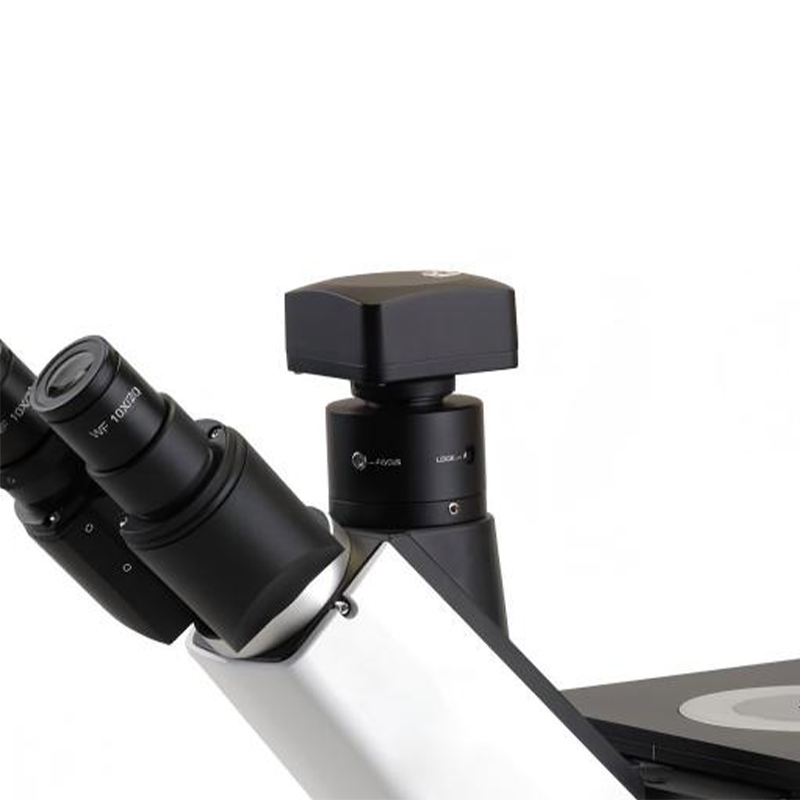

1× C-Mount camera adapter (standard) Compatible with industrial digital cameras and DSLR cameras |
|
Standard Accessories |
3C certified power adapter with power cord Neutral dust cover LM-4XC user manual LM-4XC Hex wrench set Export carton with foam buffer packaging |
LM-4XC Inverted Metallurgical Microscope Optional Details
| Eyepiece |
WF10×/18mm high eyepoint diopter-adjustable reticle eyepiece WF10×/20mm wide field plan eyepiece |
| Long Working Distance Objective |
Long WD infinity plan objective 5× / NA=0.12 / WD=21.5mm Long WD infinity plan objective 10× / NA=0.25 / WD=16mm Long WD infinity plan objective 20× / NA=0.40 / WD=9.3mm Long WD infinity plan objective 50× / NA=0.55 / WD=6.3mm Long WD infinity plan objective 80× Long WD infinity plan objective 100× (Dry) / NA=0.8 / WD=2.9mm |
| Polarizing Device |
Polarizer Analyzer |
|
Photography Adapter |

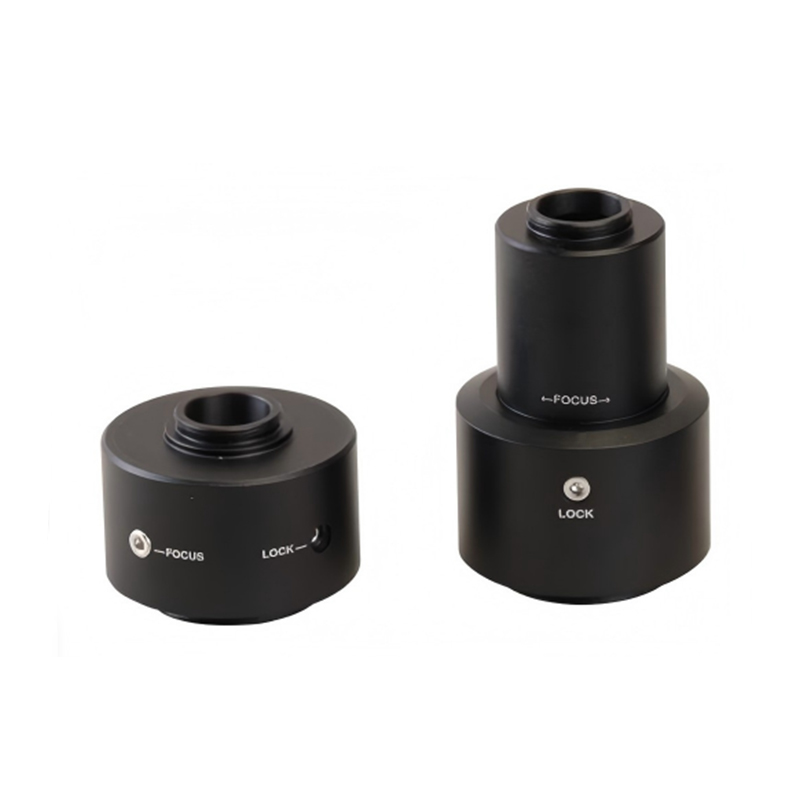

0.5× C-Mount adapter for digital camera 0.75× C-Mount adapter for digital camera CANON / NIKON SLR / OLYMPUS camera adapter |
| Digital Imaging & Analysis System |
5MP HD industrial CCD camera 500 Professional metallographic grading analysis software |
|
Other Accessories |
25×58 waist-type slide 25×58 Spring clip set 5 holes nosepiece |
